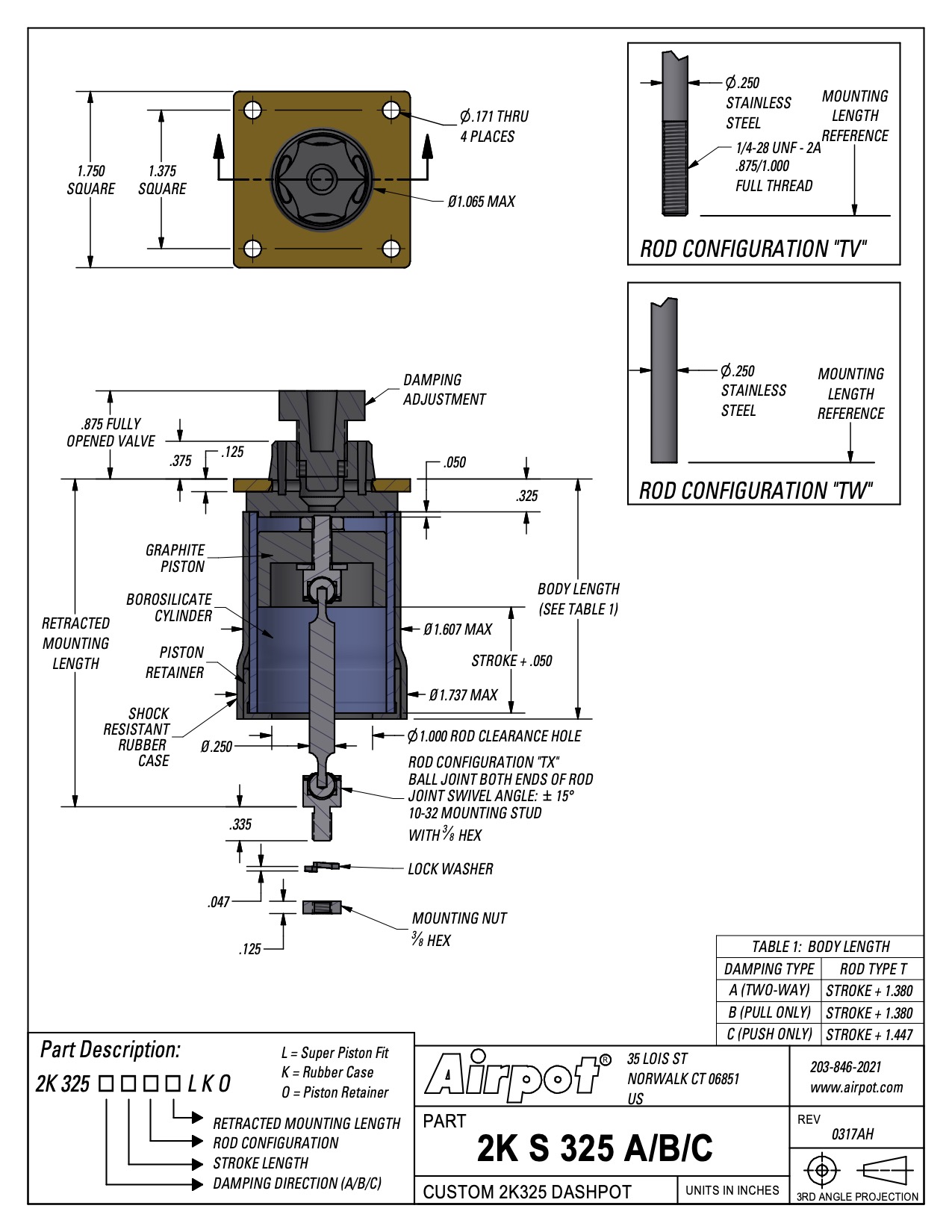

2K325 – Bore Size: 1.281″ (32.5 mm)
Category:
Custom
Basic specifications
Bore:
1.281″ (32.5 mm)
Strokes:
Increments of .125 inch to 3 decimal places (min, .125 inch)
Performance
Damping Coefficient
0-40 lb/(in/s) adjustable
0-7 N/(mm/s)
Force Guidelines
Pull Damping: 17 lb max (75.62 N)
Push Damping: 13 lb max (57.83 N)
Friction
Coefficient: .2
Force without side load: < 4g
Operating Temperature Range
-55°C to +125°C
If operating at temperatures above
+70°C, please advise factory.
Mounting Data
Mounting Nut Torque
Rod End: 5-15 in-lb (0.56-1.7Nm)
Stroke
Full stroke is obtained with customer
held mounting tolerance of ± .015″
(0.38 mm).
Configure your part
Mounting option
2K325
