Custom Dashpot Model 444

Name: Custom Dashpot Model 444
SKU: 2730
Availability: InStock

Model: 2K444

Description

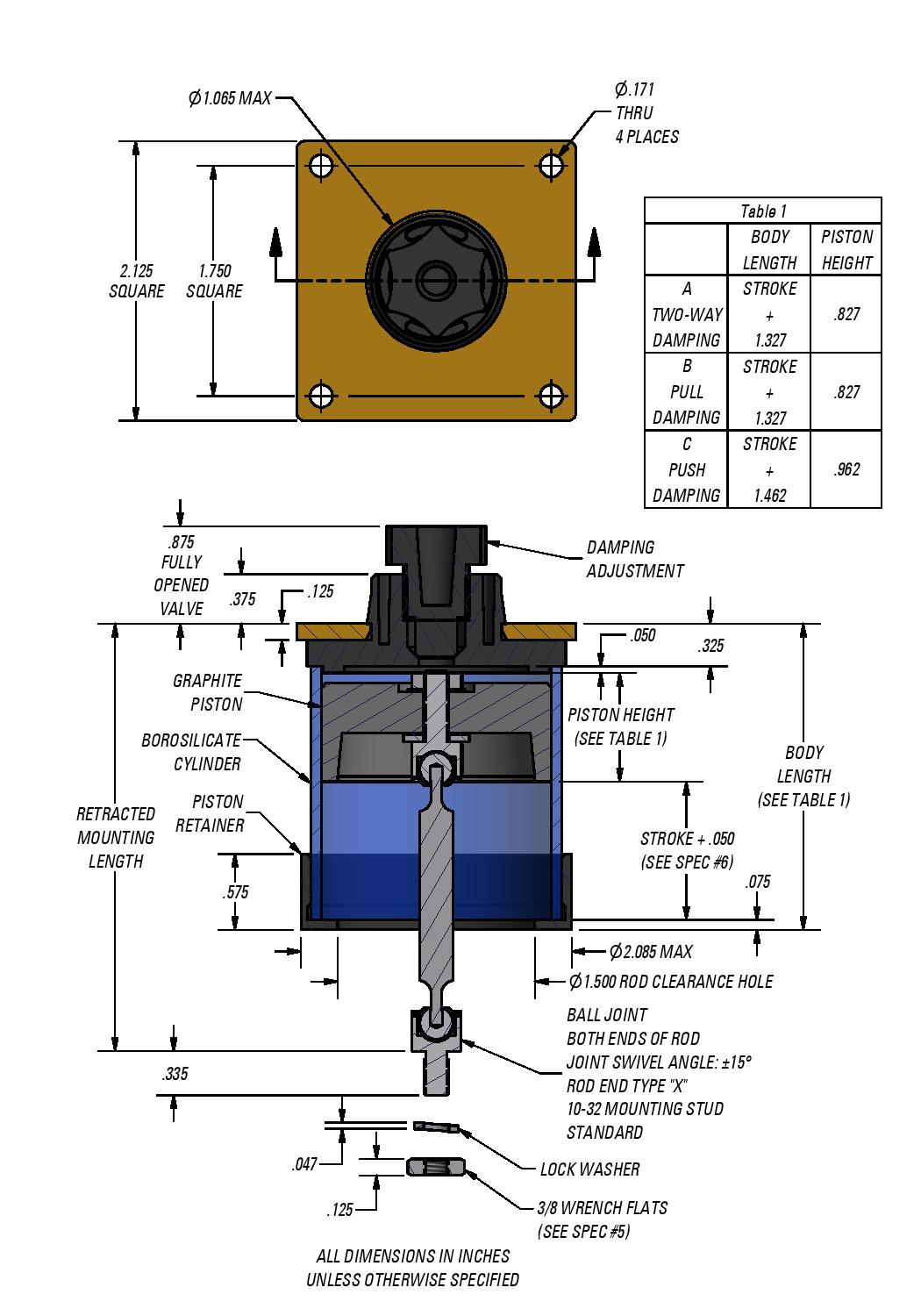

Bore: 1.750″ (44.4 mm)

Strokes: Increments of .125 inch to 3 decimal places (min, .125 inch)

Damping Coefficient
0-40 lb/(in/s) adjustable
0-7 N/(mm/s)
Force Guidelines
Pull Damping: 30 lb max (133.45 N)
Push Damping: 24 lb max (106.76 N)
Friction
Coefficient: .2 Force without side load: < 8g
Operating Temperature Range
-55°C to +125°C
If operating at temperatures above
+70°C, please advise factory.

Mounting Nut Torque
Rod End: 5-15 in-lb (0.56-1.7Nm)
Stroke
Full stroke is obtained with customer
held mounting tolerance of ± .015″
(0.38 mm).

CONFIGURE YOUR PART

2K444

Select Damping Direction
Two-Way A Pull B Push C
Enter Stroke
MIN=.125 inch Specify increments of .125 inch to 3 decimal places
Enter Retracted Mounting Length
Please specify to 3 decimal places
Rod Configuration
.250 DIA STAINLESS STEEL - STANDARD T 1/4 - 28 THREADED PLAIN END V BALL UNIVERSAL - 10 - 32 THREAD X PLAIN END W
Other Options
IMPACT RESISTANT CASE-EPDM K CYLINDER PORT (CROSS SLOT) Please specify to 3 decimal places R
