Airpel Air Cylinders (low friction)

Airpel Anti-Stiction® Air Cylinders created an amazing new class of pneumatic actuators specifically designed for highly accurate force control.  They are built using a graphite piston / borosilicate glass cylinder combination in which each piston is selectively matched to fit the cylinder with extremely close clearances. They have unparalleled low friction, responding to forces as low as only a few grams and pressures less than 0.2 psi. Starting and running friction are almost identical, preventing jerky, uncontrolled starts and providing uniform smoothness throughout the full stroke of the device. Airpel low friction air cylinders are unaffected by extreme temperature variations, run clean and do not contaminate surrounding components. No interference seals are required, and there are no lubricants or other liquids to leak. Materials used are clean running and self-lubricating and are capable of exceedingly high cycle rates. They do not heat up or materially change under conditions of rapid and/or continuous cycling and they have a life-span of multi-millions of cycles.

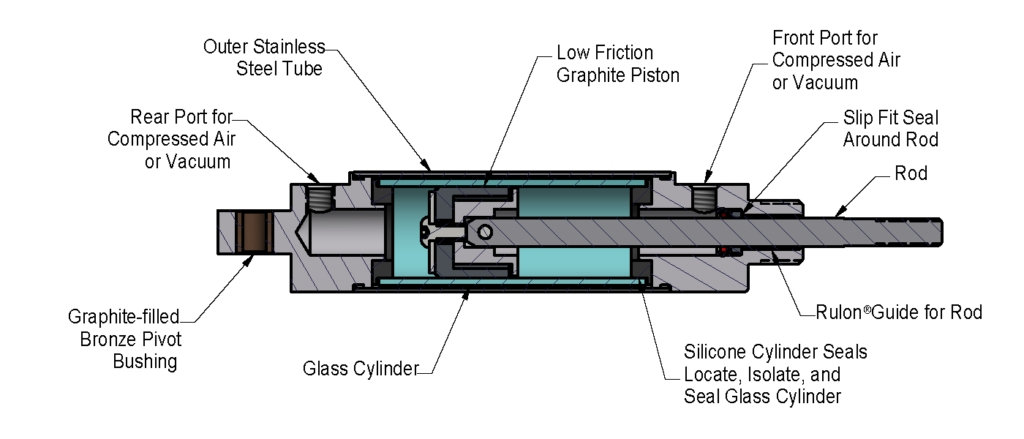

airpel section web 1024x439

The Airpel line includes devices and features that go far beyond their simple description as low friction air cylinders.  You really need to feel their smoothness to appreciate their force control capability.  For a sample unit and more information on our anti-stiction air cylinder products, contact us today!  See us for all your other custom low friction device needs as well.

IM0060063
Sensors for Airpels
Airpot GMR sensors make possible the addition of a position sensing option to our popular line of Airpel non-stiction air cylinder actuators. We offer non-contact…
airpel antistiction air cylinders3

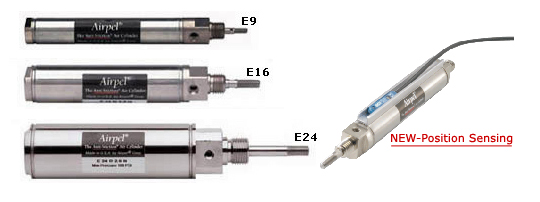

Inch Models
Imperial models of Airpel Anti-Stiction Air Cylinders are offered in three bore sizes- .366”, .627”, and .945.” Standard stroke lengths extend up to 12” with…
airpel M family
Magnet and Tracks for Sensors
Metric Airpel Anti-Stiction Air Cylinders are offered in 4 bore sizes: 9mm, 16mm, 24mm, and 32mm. Standard stroke lengths extend up to 300mm with additional…
airpel M family

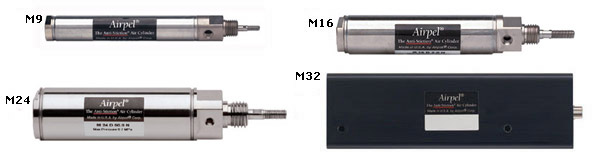

Metric Models
Metric Airpel Anti-Stiction Air Cylinders are offered in 4 bore sizes: 9mm, 16mm, 24mm, and 32mm. Standard stroke lengths extend up to 300mm with additional…
AIR1314 AirpelSensor updated
