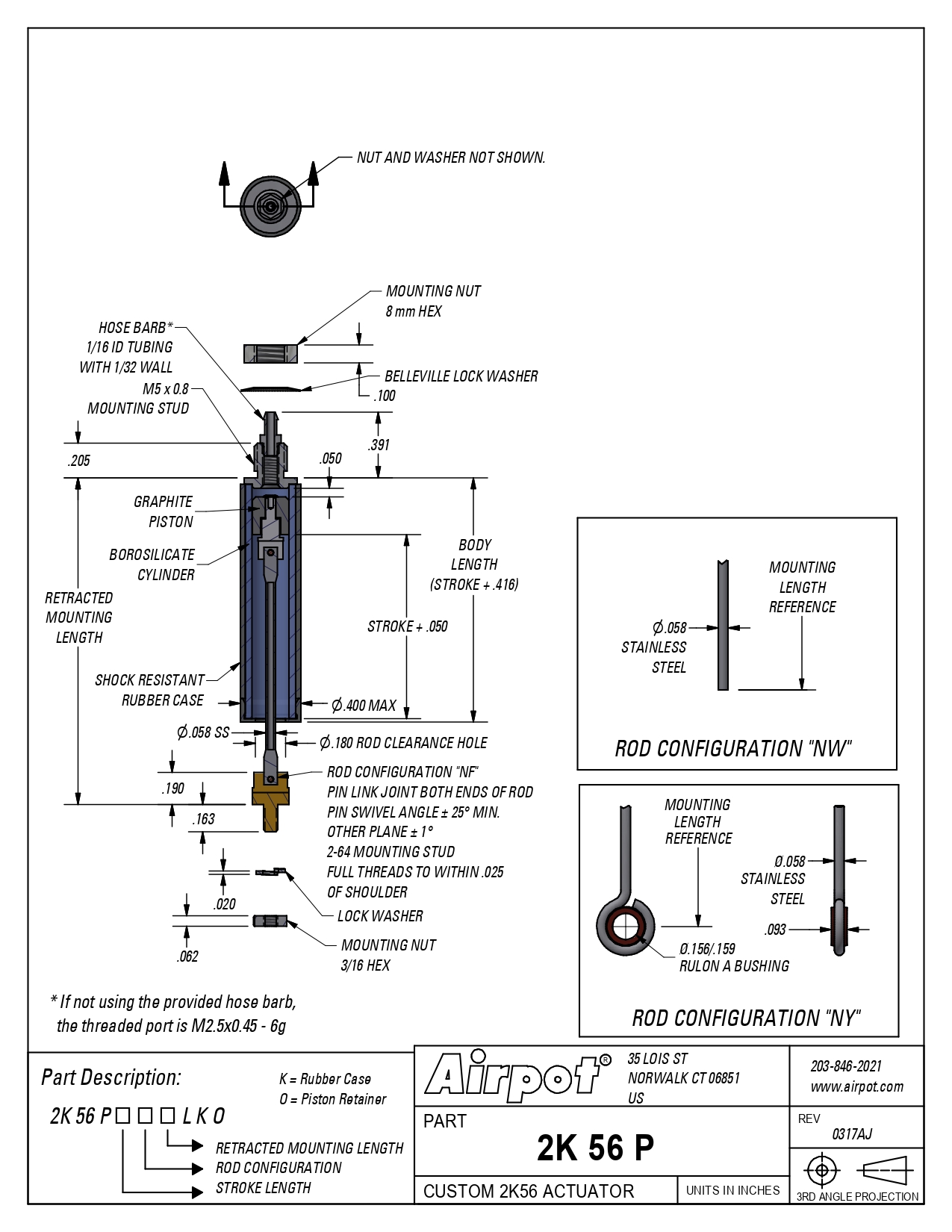

2K56P – Bore: .220″ (5.59 mm)

Category: Custom
Basic specifications

Bore: .220″ (5.59 mm)
Piston Area: .038 in² (24.54 mm²)

Performance
  1. Pressure Range
    Full vacuum-125 psi. (0.86 MPa)
  2. Force Factor
    Piston
    Area
    x Pressure =Output
    Force
    Max
    Force
    in2 psi lbs 4.75
    @ 125 psi
    mm2 MPa N 21.1
    @ 0.86 MPa
  3. Minimum Pressure Differential
    Required for Actuation
    .05 psi. (345 Pa)
  4. Maximum Leak Rate Under Pressure
    .19 SL/min @65 psi(0.45 MPa)
    .57 SL/min @125 psi(0.86 MPa)
  5. Friction
    Coefficient: .2
    Force without side load: typically .5% –
    1.5% of load
  6. Operating Temperature Range
    -55°C to +150°C
    If operating at temperatures above
    +70°C, please advise factory.
Mounting Data
  1. Suggested Mounting Bracket Thickness
    .050″-.100″ (1.27-2.54 mm)
  2. Mounting Nut Torque
    Head: 2-4 in-lb (0.23-0.45 Nm)
    Rod End: 1-3 in-lb (0.11-0.34 Nm)
    Fitting: 12 in-lb max
  3. Stroke
    Full stroke is obtained with customer
    held mounting tolerance of ± .015″
    (0.38 mm).
Configure your part
Mounting option
