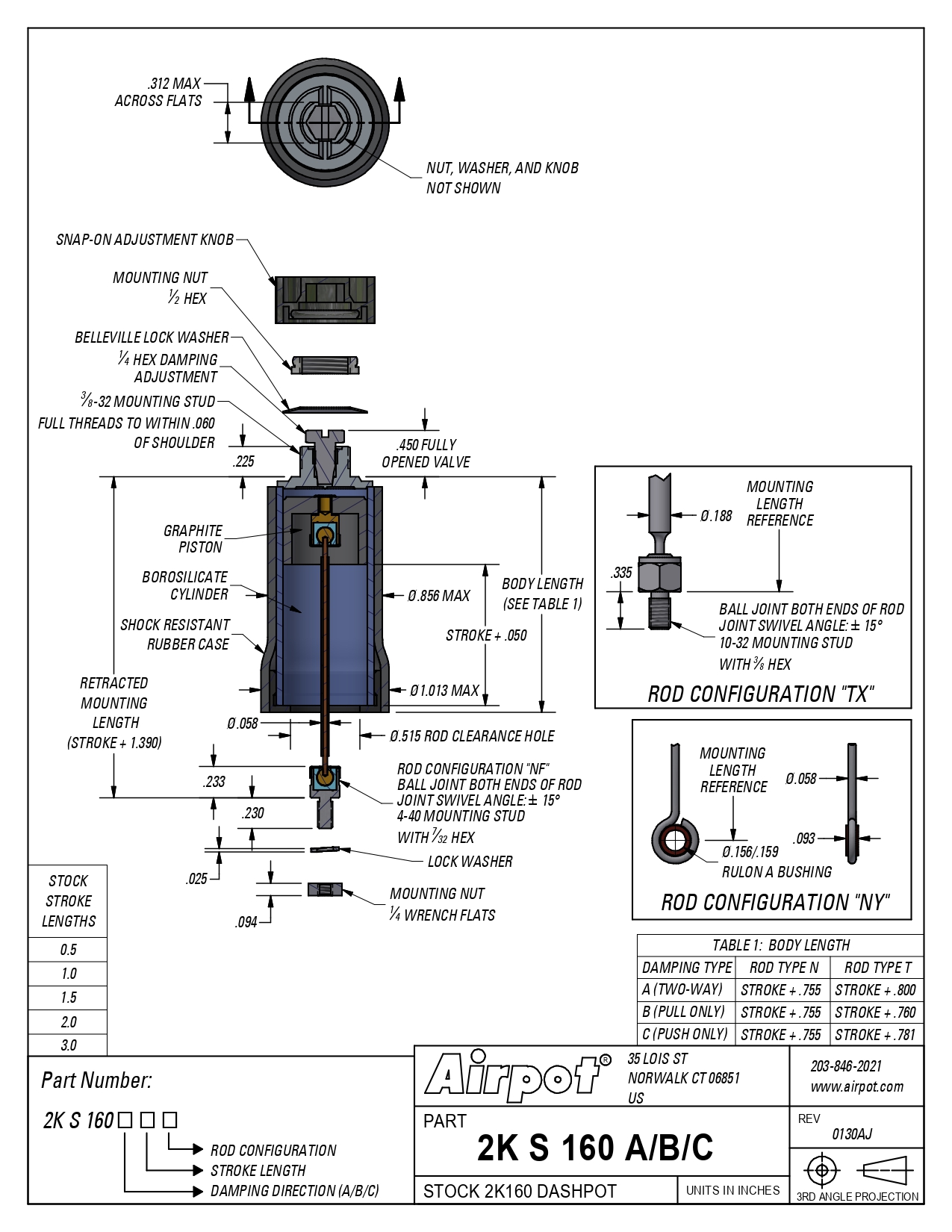

2KS160 – Bore Size: .627″ (15.93 mm)
Basic specifications
Bore: .627″ (15.93 mm)
Strokes: 0.5, 1, 1.5, 2, 3
Performance
- Damping Coefficient
0-5 lb/(in/s) adjustable
0-0.88 N/(mm/s) - Force Guidelines
Pull Damping: 4 lb max (18 N)
Push Damping: 3 lb max (13 N) - Friction
Coefficient: .2
Force without side load: < 1g - Operating Temperature Range
-55°C to +150°C
If operating at temperatures above
+70°C, please advise factory.
Mounting Data
- Mounting Hole
Rectangular: .312″ x .375″ or
8 mm x 10 mm
Round: .375″ or 10 mm) - Suggested Mounting Bracket Thickness
.060″ – .093″ (1.52 – 2.36mm - Mounting Nut Torque
Head: 4-8 in-lb (0.45-0.9Nm)
Rod End: 2-5 in-lb (0.23-0.56Nm) - Stroke
Full stroke is obtained with customer held mounting tolerance of ± .015″ (0.38 mm).
Configure your part
Mounting option
