2KS444P – Bore: 1.750″ (44.4 mm)

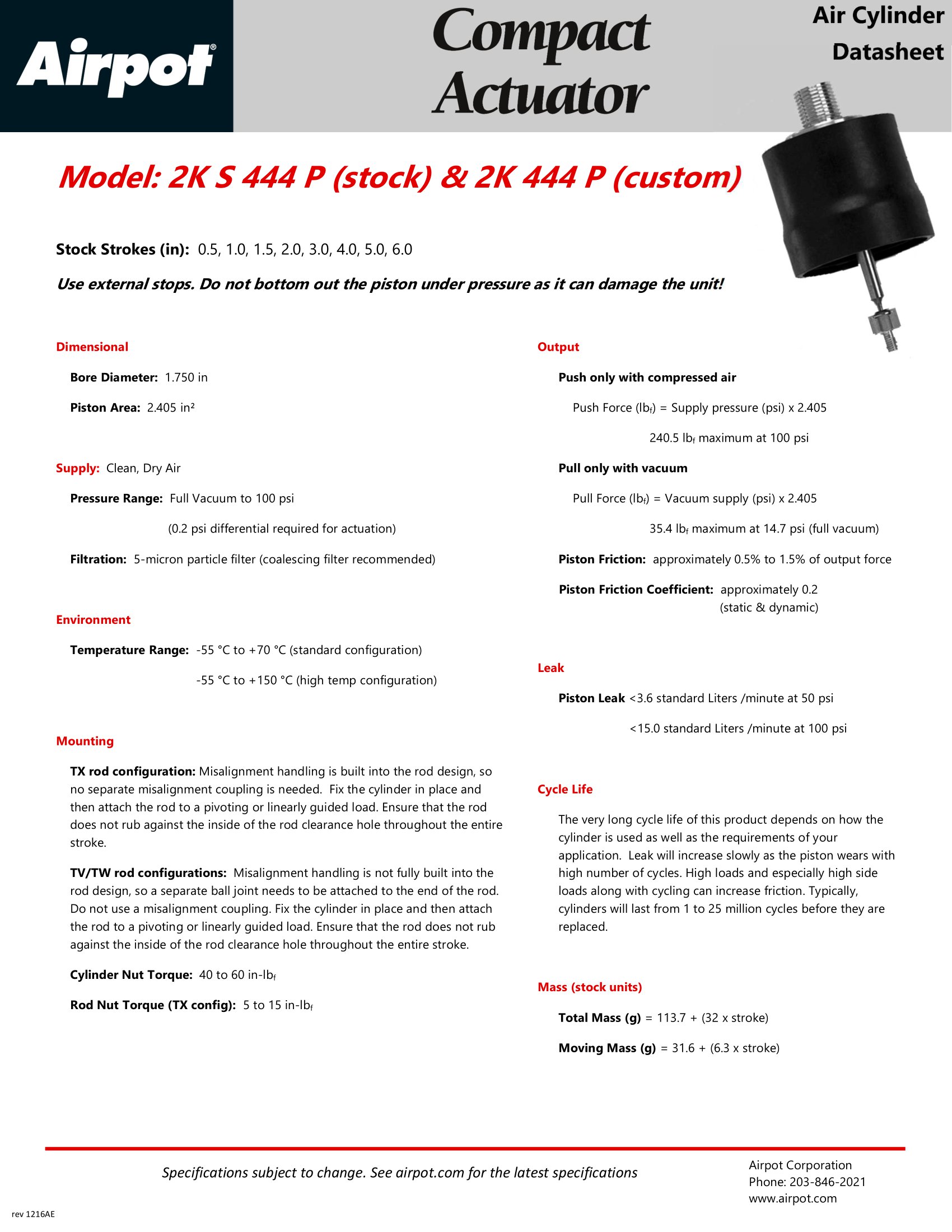

Basic specifications
Bore: 1.750″ (44.4 mm)
Piston Area: 2.405 in² (1551.61 mm²)
Strokes: 0.5, 1, 1.5, 2.0, 3.0, 4.0, 5, 6
Performance
- Pressure Range
Full vacuum-100 psi. (0.69 MPa) - Force Factor
Piston
Areax Pressure =Output
ForceMax
Forcein2 psi lbs 240.5
@ 100 psimm2 MPa N 1070.61
@ 0.69 MPa - Minimum Pressure Differential
Required for Actuation
.05 psi. (345 Pa) - Maximum Leak Rate Under Pressure
3.6 SL/min @50 psi(0.34 MPa)
15.0 SL/min @100 psi(0.69 MPa) - Friction
Coefficient: .2 Force without side load: typically .5% –
1.5% of load - Operating Temperature Range
-55°C to +150°C
If operating at temperatures above
+70°C, please advise factory.

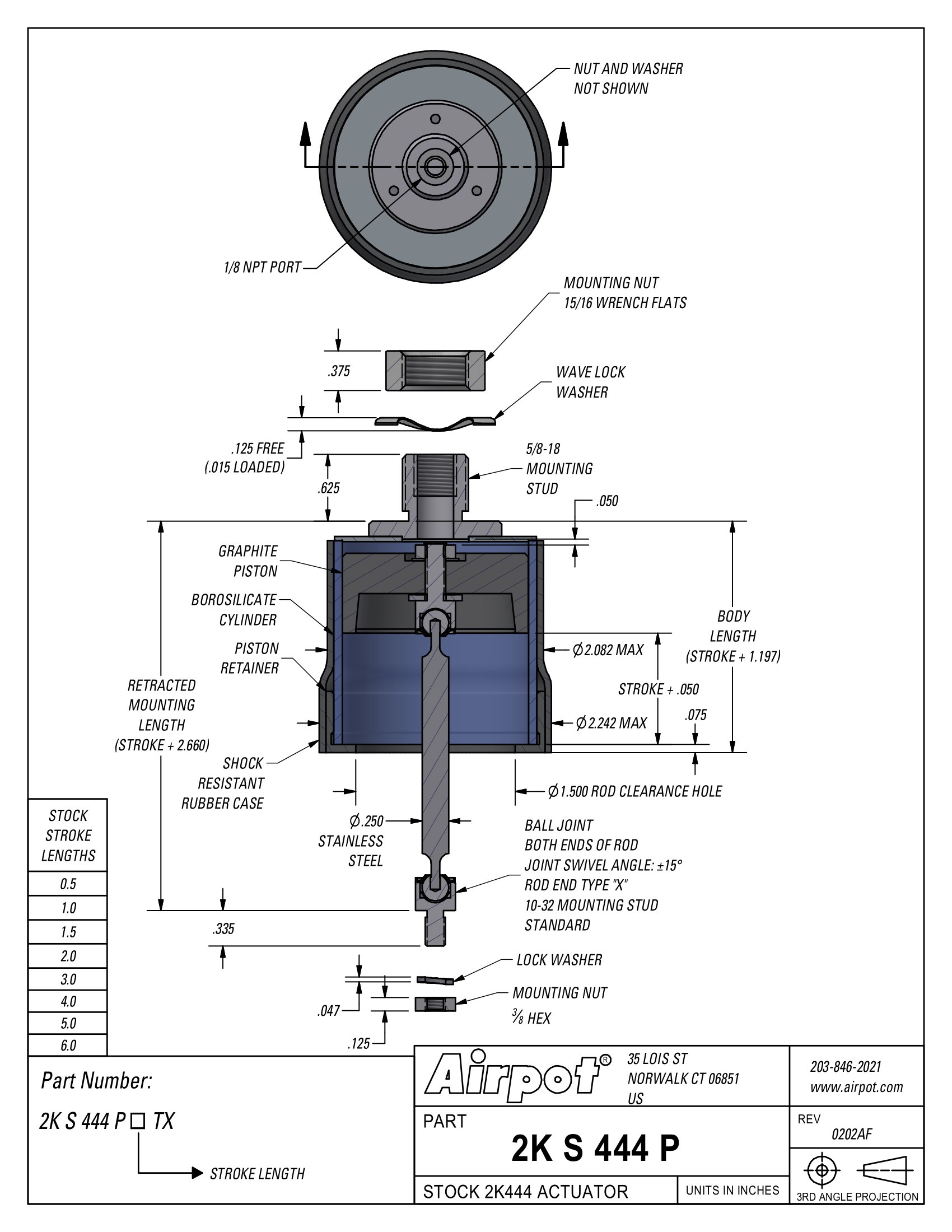

Mounting Data
- Mounting Hole
Round: .625″ min or 16 mm - Suggested Mounting Bracket Thickness
.0″-.250″ (0-6.35 mm) - Mounting Nut Torque
Head: 40-60 in-lb (4.5-6.8 Nm) Rod End: 5-15 in-lb (0.56-1.7 Nm) - Stroke
Full stroke is obtained with customer
held mounting tolerance of ± .015″
(0.38 mm).
Configure your part
Mounting option
