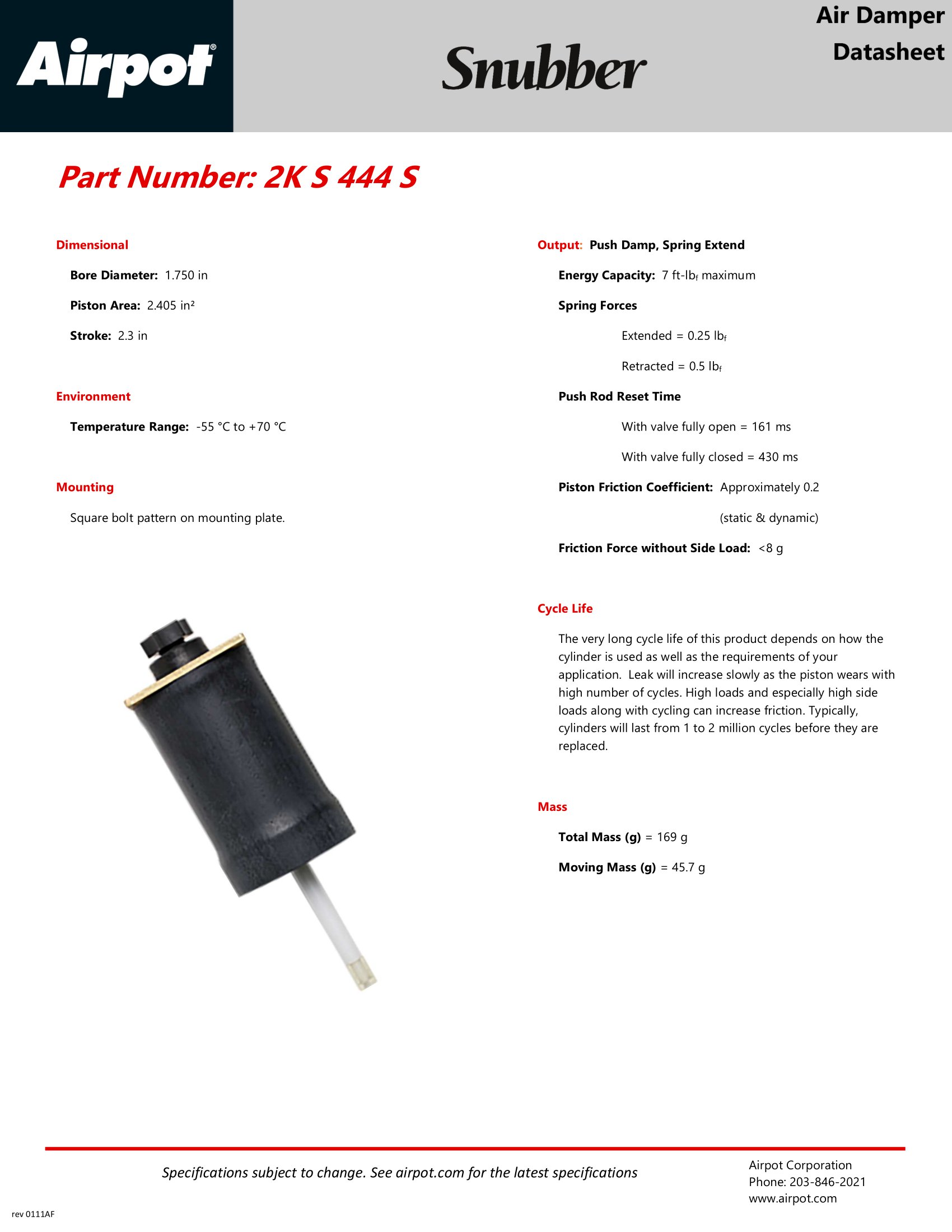

2KS444S – Bore Size: 1.750″ (44.4 mm)
Basic specifications
Bore: 1.750″ (44.4 mm)
Performance
- Energy Dissipation
0-7 ft-lb (0-9.49 Nm) - Spring Force
Extended: .25 lb (1.11 N)
Retracted: .5 lb max (2.22 N) - Friction
Coefficient: .2
Force without side load: < 8g - Typical Push Rod Reset Time
Fully Opened Valve: 161 ms
Fully Closed Valve: 430 ms - Operating Temperature Range
-55°C to +150°C
If operating at temperatures above
+70°C, please advise factory.
Part Number

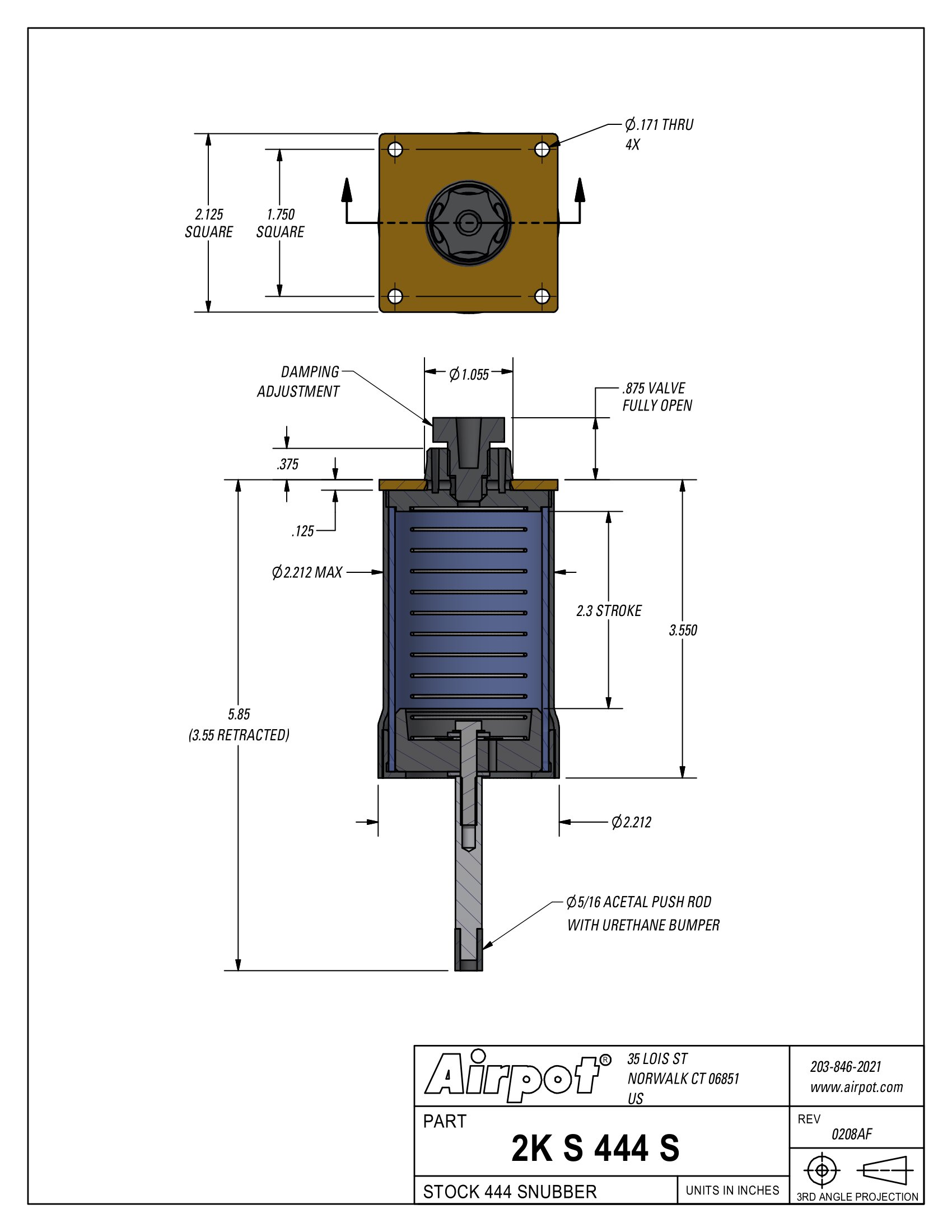

Mounting option
