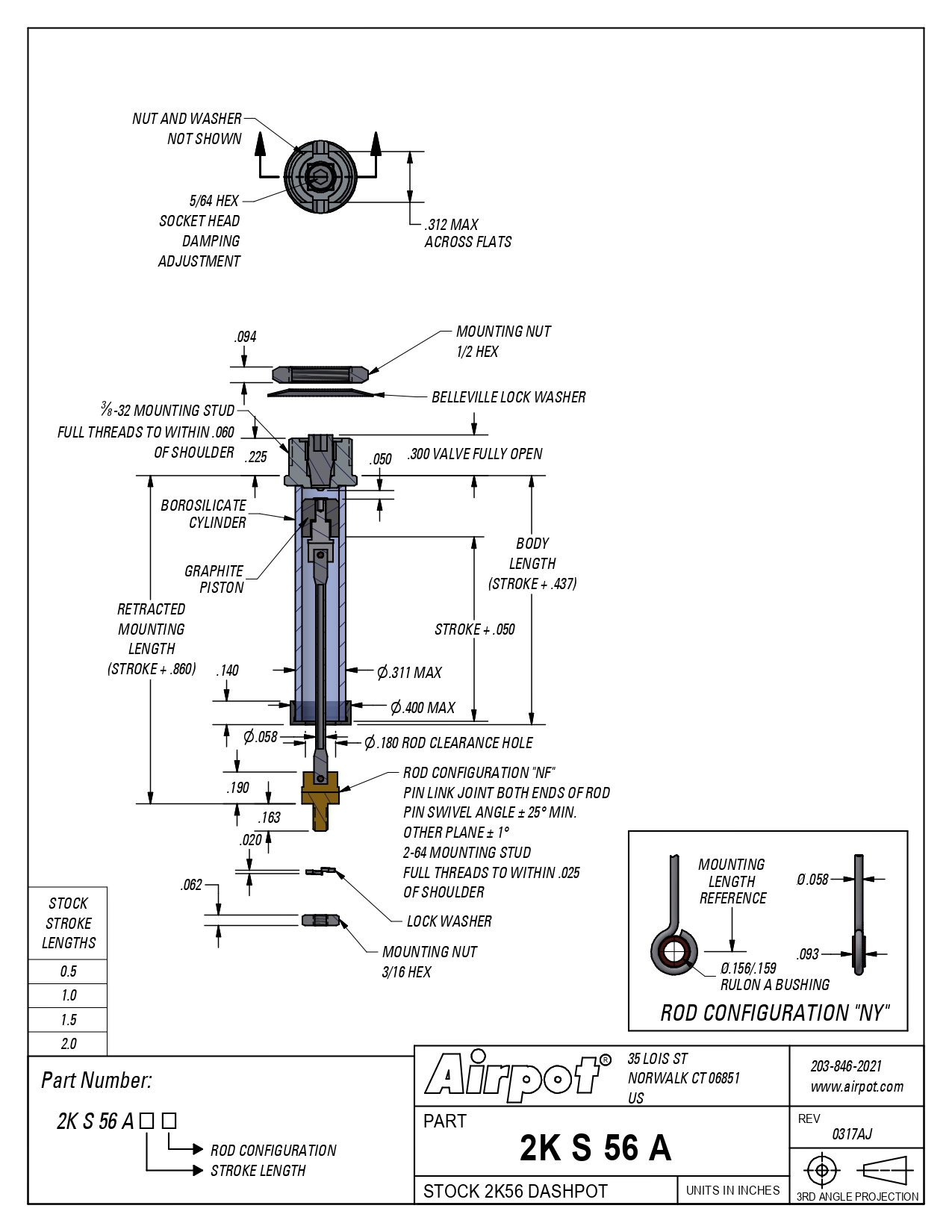

2KS56 – Bore Size: .220″ (5.59 mm)

Category: Stock
Basic specifications

Bore: .220″ (5.59 mm)

Strokes: 0.5, 1, 1.5, 2

Performance
  1. Damping Coefficient
    0-.5 lb/(in/s) adjustable
    0-0.088 N/(mm/s)
  2. Force Guidelines
    Pull Damping: .5 lb max (2.22 N)
    Push Damping: .35 lb max (1.55 N)
  3. Friction
    Coefficient: .2
    Force without side load: < 1g
  4. Operating Temperature Range
    -55°C to +150°C
    If operating at temperatures above
    +70°C, please advise factory.
Mounting Data
  1. Mounting Hole
    Rectangular: .312″ x .375″ or
    8 mm x 10 mm
    Round: .375″ or 10 mm)
  2. Suggested Mounting Bracket Thickness
    .060″ – .125″ (1.52 – 3.18mm)
  3. Mounting Nut Torque
    Head: 4-8 in-lb (0.45-.9Nm)
    Rod End: 1-3 in-lb (0.11-.34Nm)
  4. Stroke
    Full stroke is obtained with customer
    held mounting tolerance of ± .015″
    (0.38 mm).
Configure your part
Mounting option
Airpot offers four product families in our line of customizable pneumatic actuator.
