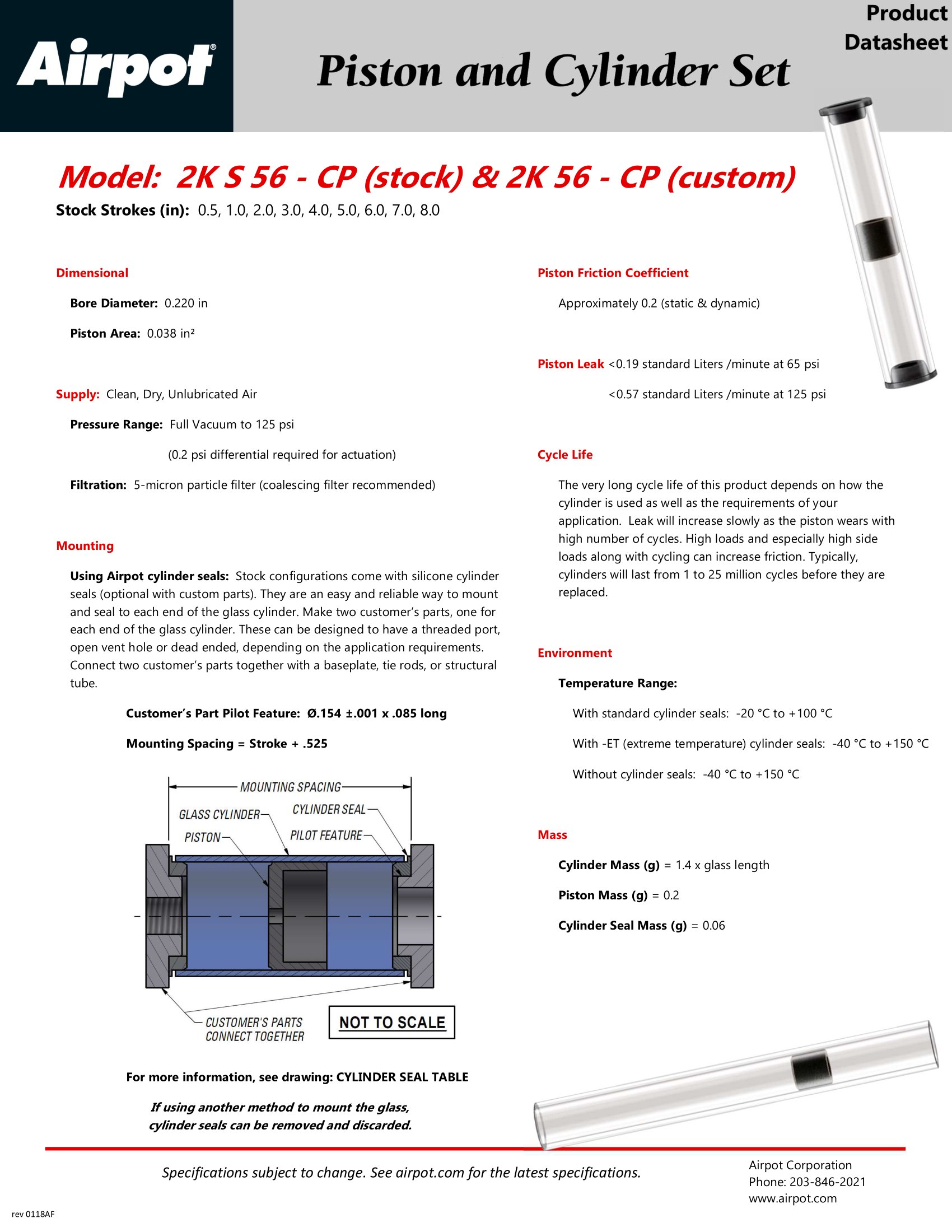

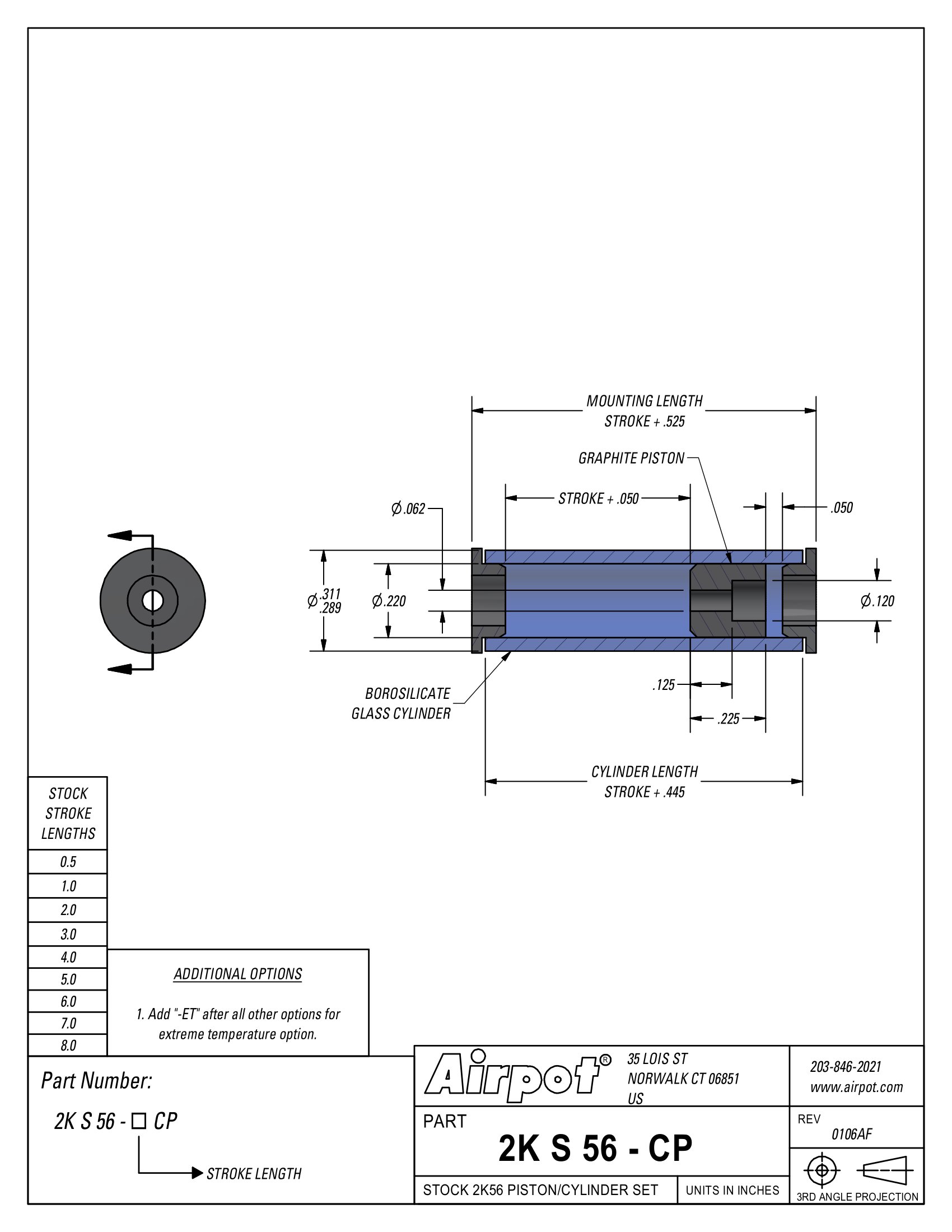

2KS56 – Bore Size (inch): .220
Configure your part
Mounting option
| MODEL | ||
|---|---|---|
| Bore (mm) | 32.5 | 32.5 |
| Maximum Pressure (MPa) | 0.7 | 0.7 |
| Suitable for Vacuum Actuation? | No | Yes |
| Maximum Stock Stroke (mm) | 175 | 300 |
| Custom Strokes Available? | No | Yes |
| Works with Position Sensors (switches)? | Yes (bracket required) | Yes |
| Port Size | M5 | G 1/8 |
| The M33 weight is less than the M32. | ||
| The M33 cycle life is higher than the M32. | ||
