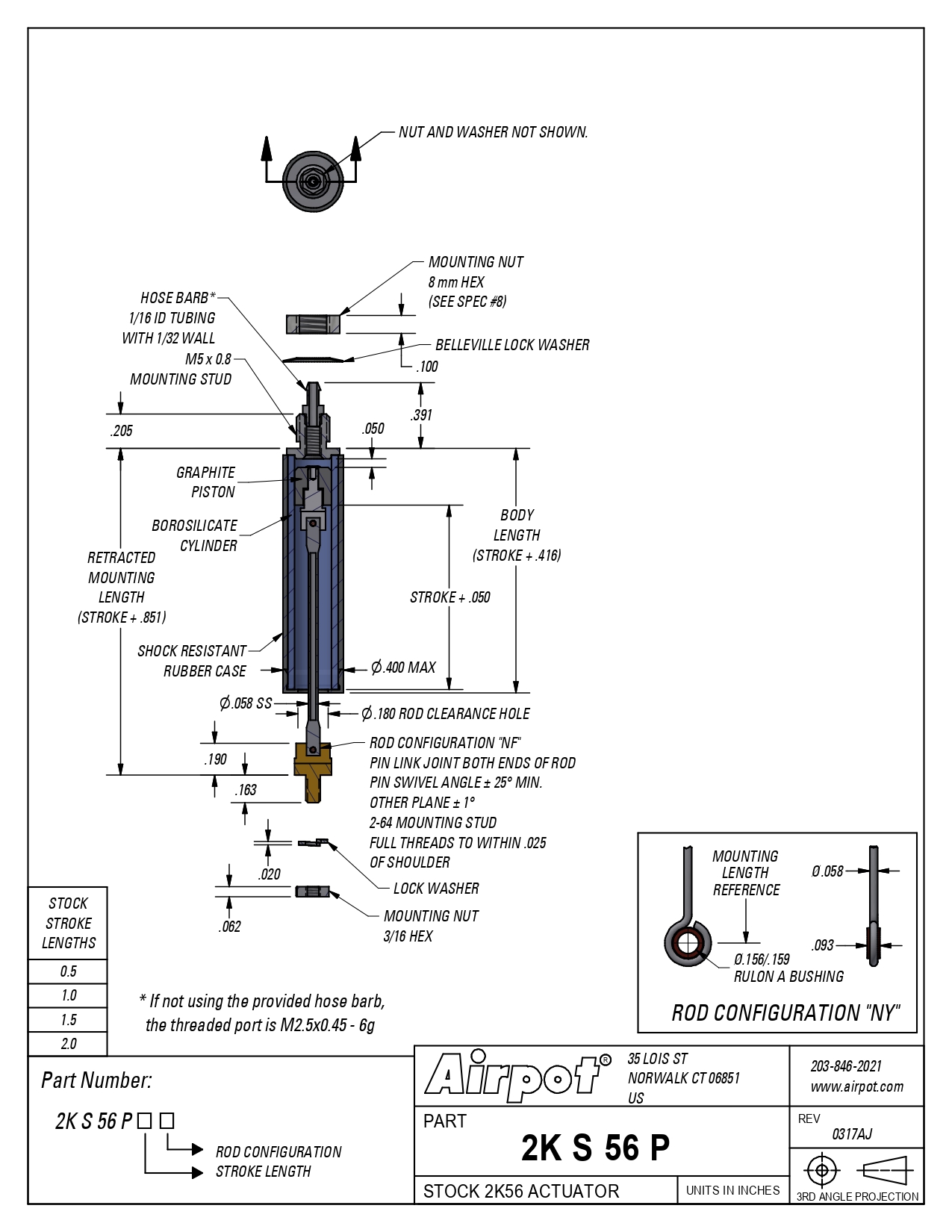

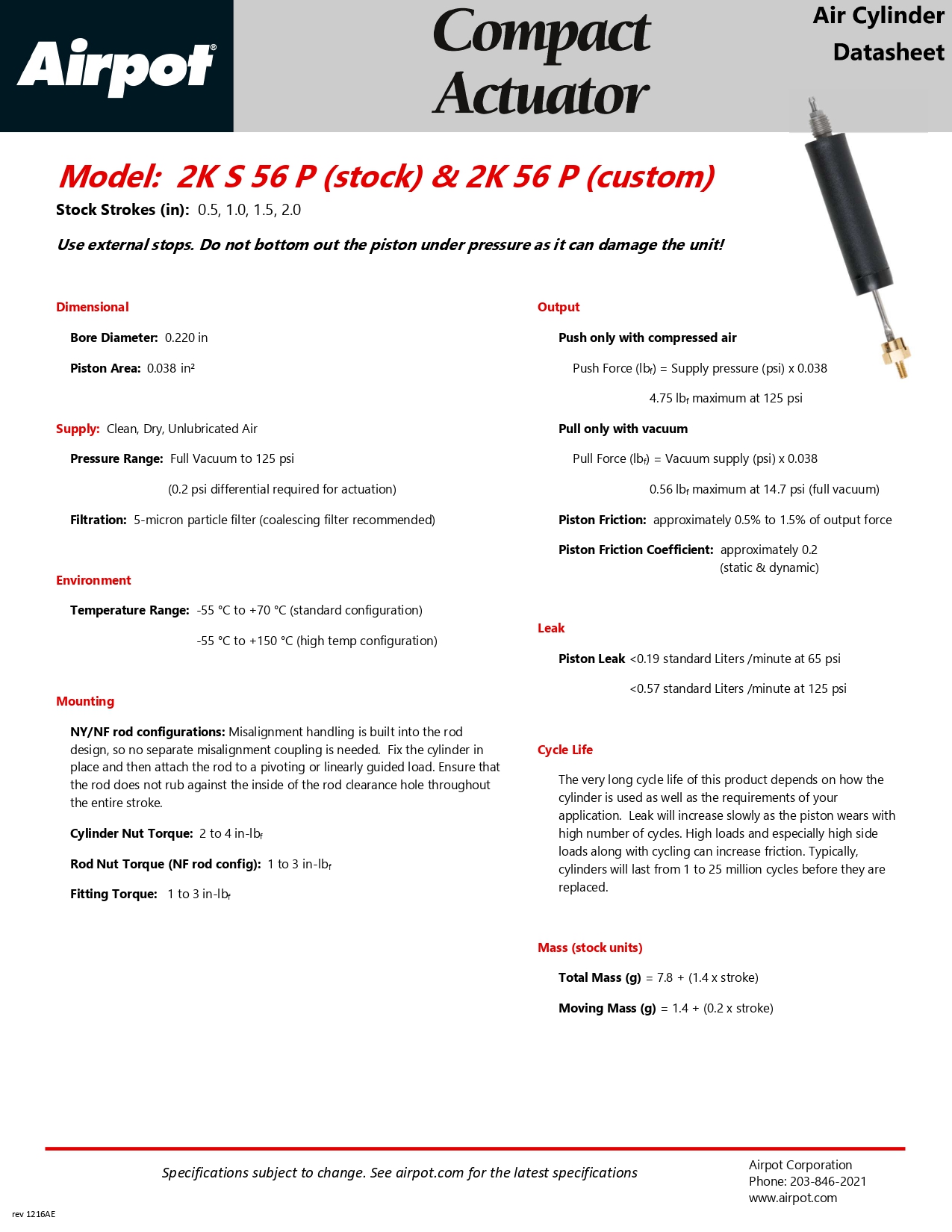

2KS56P – Bore: .220″ (5.59 mm)
Category:
Stock
Basic specifications
Bore:
.220″ (5.59 mm)
Piston Area:
.038 in² (24.54 mm²)
Strokes:
0.5, 1, 1.5, 2.0
Performance
Pressure Range
Full vacuum-125 psi. (0.86 MPa)
Force Factor
Piston
Area
x Pressure
=Output
Force
Max
Force
in
2
psi
lbs
4.75
@ 125 psi
mm
2
MPa
N
21.1
@ 0.86 MPa
Minimum Pressure Differential
Required for Actuation
.05 psi. (345 Pa)
Maximum Leak Rate Under Pressure
.19 SL/min @65 psi(0.45 MPa)
.57 SL/min @125 psi(0.86 MPa)
Friction
Coefficient: .2
Force without side load: typically .5% –
1.5% of load
Operating Temperature Range
-55°C to +150°C
If operating at temperatures above
+70°C, please advise factory.
Mounting Data
Suggested Mounting Bracket Thickness
.050″-.100″ (1.27-2.54 mm)
Mounting Nut Torque
Head: 2-4 in-lb (0.23-0.45 Nm)
Rod End: 1-3 in-lb (0.11-0.34 Nm)
Fitting:12 in-lb max
Stroke
Full stroke is obtained with customer
held mounting tolerance of ± .015″
(0.38 mm).
