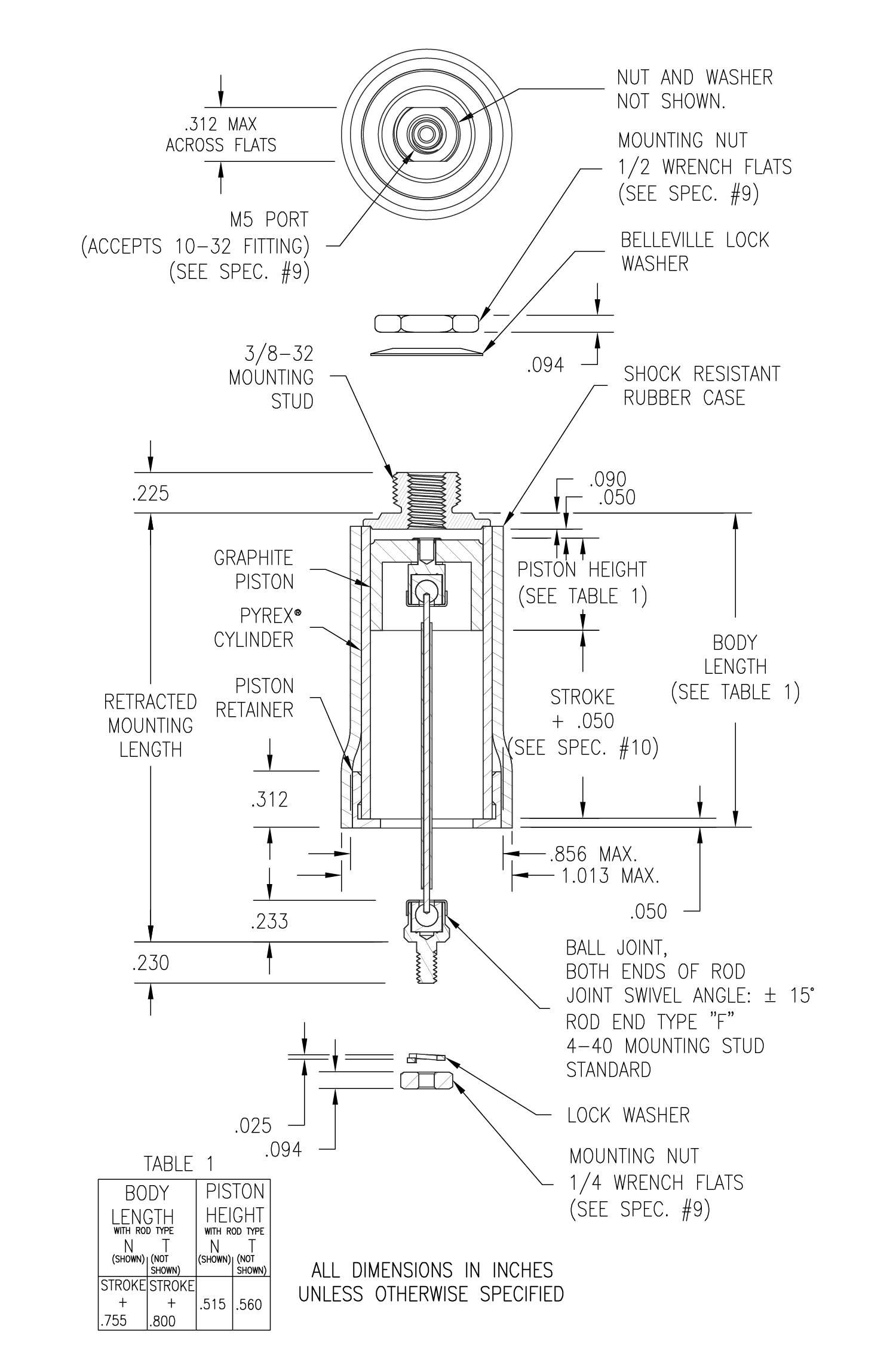

Custom Actuators Model 160P

Category:
Model: 2K160P
CONFIGURE YOUR PART

Description

Bore: .627″ (15.93 mm)
Piston Area: .309 in² (199.2 mm²)

  1. Pressure Range
    Full vacuum-100 psi. (0.69 MPa)
  2. Force Factor
    Piston
    Area    		 x Pressure =Output
    Force    		 Max
    Force
    in2 psi lbs 30.9
    @ 100 psi
    mm2 MPa N 137.45
    @ 0.69 MPa
  3. Minimum Pressure Differential
    Required for Actuation
    .05 psi. (345 Pa)
  4. Maximum Leak Rate Under Pressure
    .74 SL/min @50 psi(0.34 MPa)
    2.78 SL/min @100 psi(0.69 MPa)
  5. Friction
    Coefficient: .2 Force without side load: typically .5% –
    1.5% of load
  6. Operating Temperature Range
    -55°C to +150°C
    If operating at temperatures above
    +70°C, please advise factory.
  1. Mounting Hole
    Rectangular: .312″ x .375″ or
    8 mm x 10 mm
    Round: .375″ min or 10 mm
  2. Suggested Mounting Bracket Thickness
    .060″-.125″ (1.52-3.18 mm)
  3. Mounting Nut Torque
    Head: 4-8 in-lb (0.45-0.9 Nm) Rod End: 2-5 in-lb (0.23-0.56 Nm) Fitting: 12 in-lb max
  4. Stroke
    Full stroke is obtained with customer
    held mounting tolerance of ± .015″
    (0.38 mm).
single product
CONFIGURE YOUR PART
2K160P
Enter Stroke
Enter Retracted Mounting Length
Rod Configuration
  • .058 DIA STAINLESS STEEL ( Supply pressures to 35 psi max )
    N
  • BALL UNIVERSAL - 4-40 THREAD
    F
  • LOOP WITH .156 ID REMOVABLE RULON BUSHING
    Y
  • PLAIN END
    W
  • .187 DIA. ALUMINUM ( Supply pressures to 100 psi max )
    T
  • 10-32 THREADED PLAIN END
    V
  • BALL UNIVERSAL - 10 - 32 THREAD
    X
  • PLAIN END
    W
