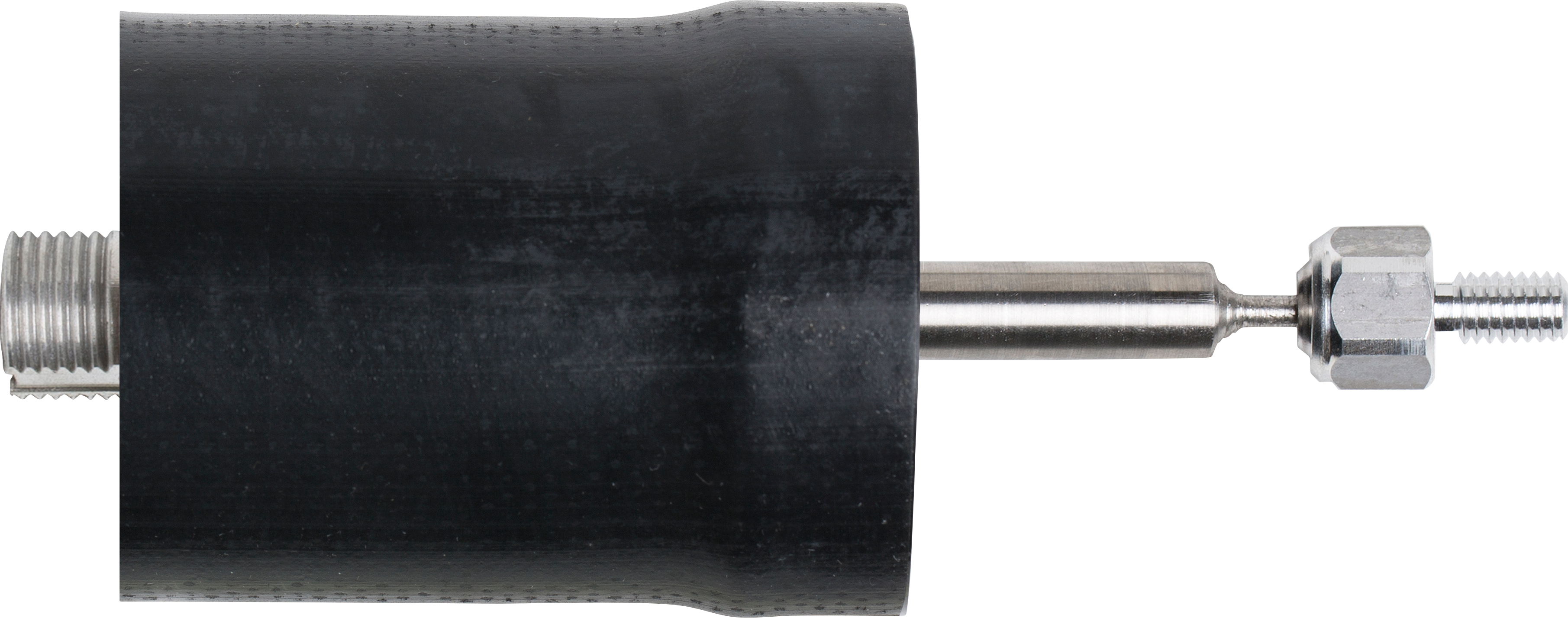

Description
Bore: .945″ (24 mm)
Piston Area: .701 in² (452.25 mm²)
- Pressure Range
Full vacuum-100 psi. (0.69 MPa) - Force Factor
Piston
Areax Pressure =Output
ForceMax
Forcein2 psi lbs 70.1
@ 100 psimm2 MPa N 312.05
@ 0.69 MPa - Minimum Pressure Differential
Required for Actuation
.05 psi. (345 Pa) - Maximum Leak Rate Under Pressure
1.06 SL/min @50 psi(0.34 MPa)
5.60 SL/min @100 psi(0.69 MPa) - Friction
Coefficient: .2 Force without side load: typically .5% –
1.5% of load - Operating Temperature Range
-55°C to +150°C
If operating at temperatures above
+70°C, please advise factory.

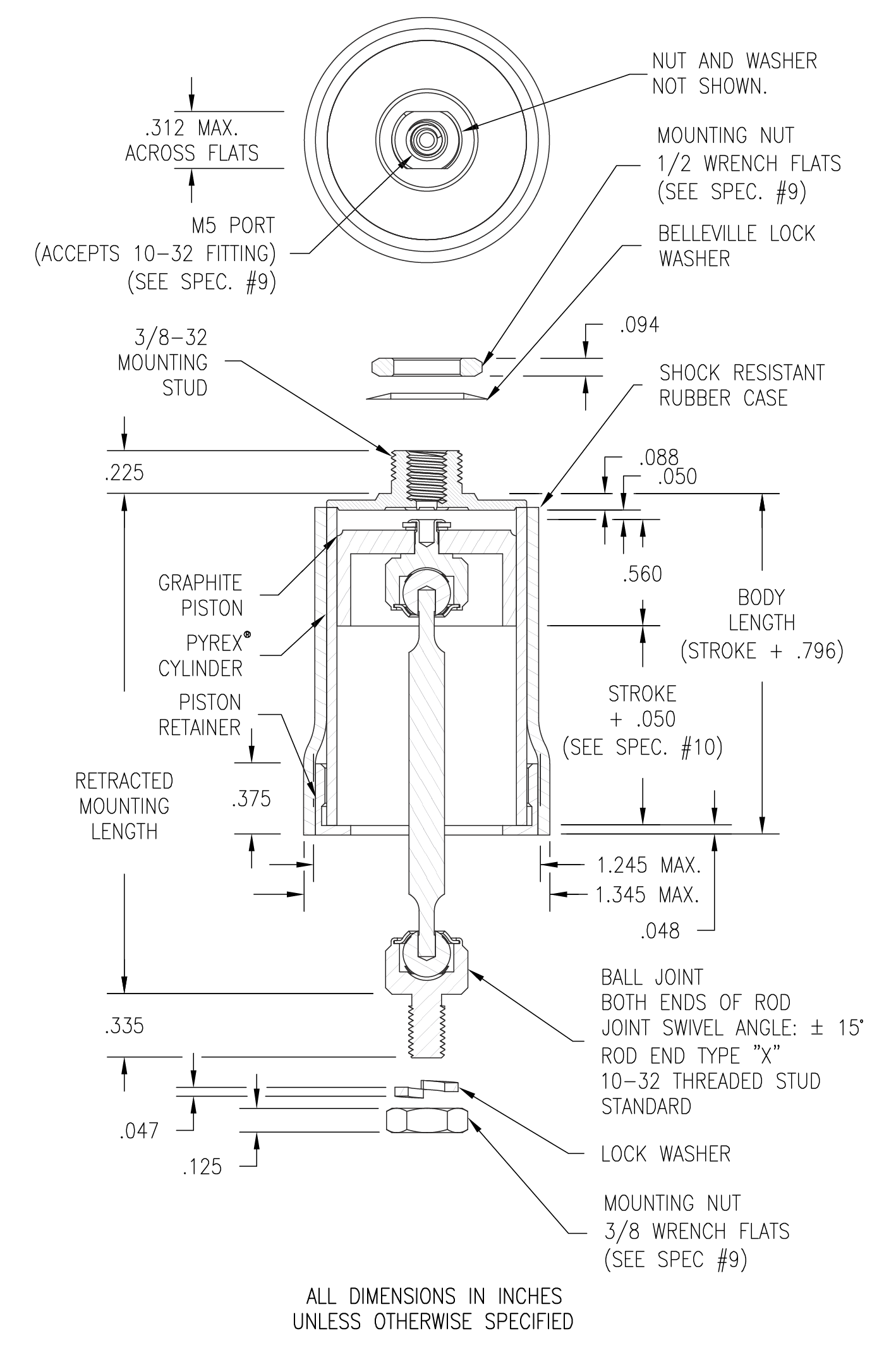

- Mounting Hole
Rectangular: .312″ x .375″ or
8 mm x 10 mm
Round: .375″ min or 10 mm - Suggested Mounting Bracket Thickness
.060″-.125″ (1.52-3.18 mm) - Mounting Nut Torque
Head: 4-8 in-lb (0.45-0.9 Nm) Rod End: 5-15 in-lb (0.56-1.7 Nm) Fitting: 12 in-lb max - Stroke
Full stroke is obtained with customer
held mounting tolerance of ± .015″
(0.38 mm).
