Supply voltage 12-30 V DC

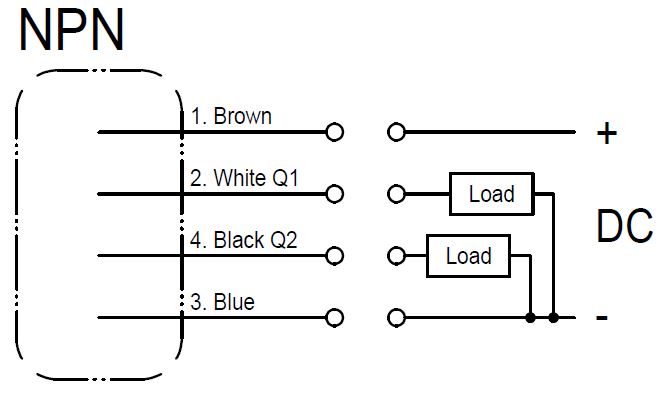

Electrical wiring DC 4-wire
Output function Normally Open
Ambient operating temperature -20 °C to +75 °C
Cable length 3 m
Cable end plain end
This sensor is for use with our model G8-18-S precision gripper
| MODEL | ||
|---|---|---|
| Bore (mm) | 32.5 | 33 |
| Piston Area (mm2) | 830 | 830 |
| Maximum Pressure (MPa) | 0.7 | 0.7 |
| Suitable for Vacuum Actuation? | No | No |
| Maximum Push Force (N) | 581 | 581 |
| Maximum Pull Force (N) | 526 | 526 |
|
Operating Temperature Range (°C):
Standard Configuration
Extreme Temperature
|
-20 to +100
-40 to +150
|
-20 to +100
-40 to +150
|
| MAX Leak Rate at 0.34 MPa- by Piston: Standard L/min | 2.2 | 2.2 |
| MAX Leak Rare at 0.34 MPa- by Rod Seal: Standard L/min | 2 | 2 |
