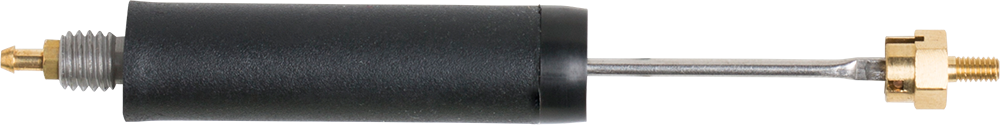

Stock Actuators Model 56P

Category:
Model: 2KS56P
CONFIGURE YOUR PART

Description

Bore: .220″ (5.59 mm)
Piston Area: .038 in² (24.54 mm²)
Strokes: 0.5, 1, 1.5, 2.0

  1. Pressure Range
    Full vacuum-125 psi. (0.86 MPa)
  2. Force Factor
    Piston
    Area    		 x Pressure =Output
    Force    		 Max
    Force
    in2 psi lbs 4.75
    @ 125 psi
    mm2 MPa N 21.1
    @ 0.86 MPa
  3. Minimum Pressure Differential
    Required for Actuation
    .05 psi. (345 Pa)
  4. Maximum Leak Rate Under Pressure
    .19 SL/min @65 psi(0.45 MPa)
    .57 SL/min @125 psi(0.86 MPa)
  5. Friction
    Coefficient: .2
    Force without side load: typically .5% –
    1.5% of load
  6. Operating Temperature Range
    -55°C to +150°C
    If operating at temperatures above
    +70°C, please advise factory.
  1. Suggested Mounting Bracket Thickness
    .050″-.100″ (1.27-2.54 mm)
  2. Mounting Nut Torque
    Head: 2-4 in-lb (0.23-0.45 Nm)
    Rod End: 1-3 in-lb (0.11-0.34 Nm)
    Fitting:12 in-lb max
  3. Stroke
    Full stroke is obtained with customer
    held mounting tolerance of ± .015″
    (0.38 mm).
single productDownload PDF
CONFIGURE YOUR PART
2KS56P
Stroke (Inches)
Rod Configuration
  • .058 DIA 304 STAINLESS STEEL
    N
  • LOOP WITH .156 ID REMOVABLE RULON BUSHING
    Y
  • PIN LINK WITH 2-64 THREAD
    F
3D File
ADD TO CART
