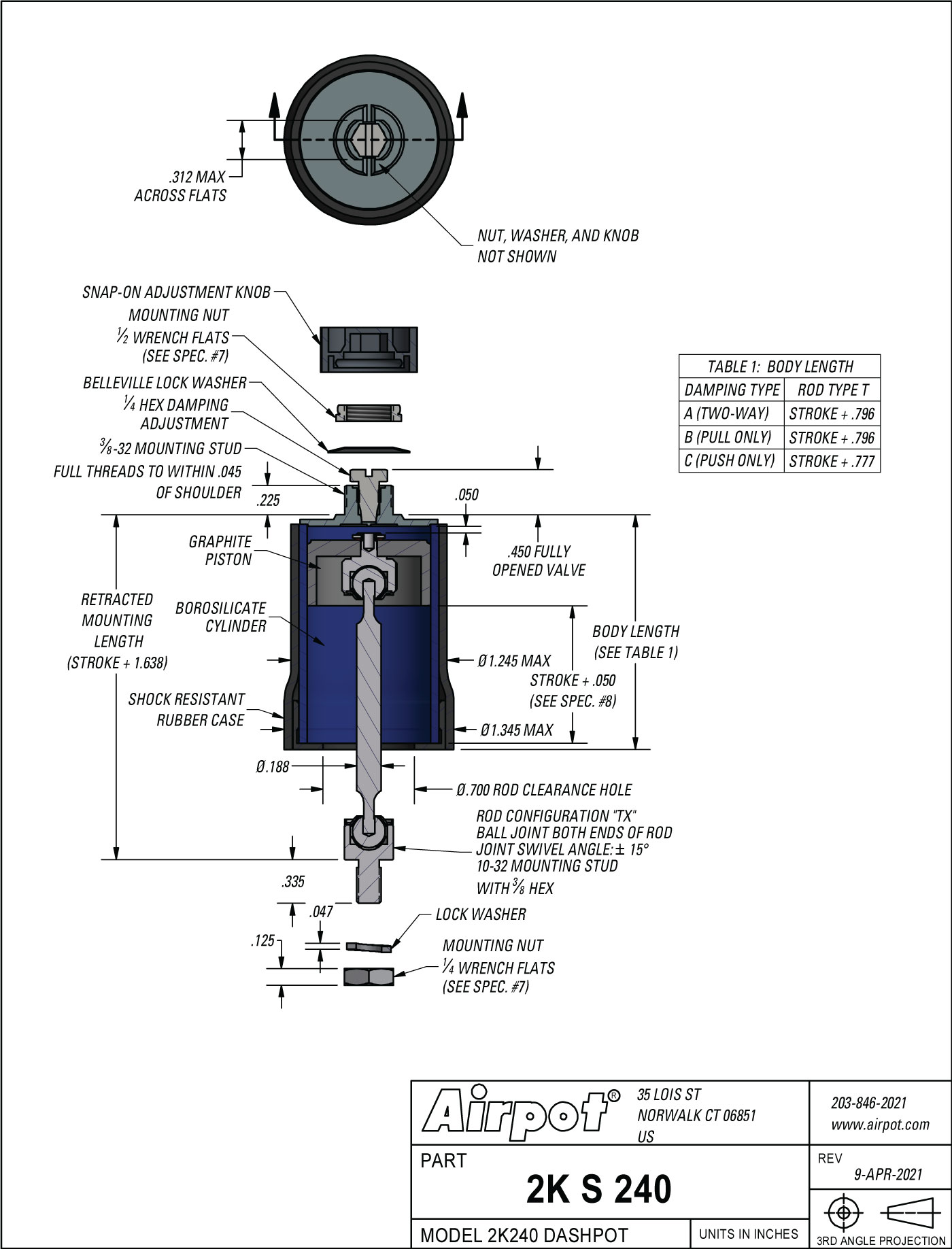

Description
Bore: .945″ (24 mm)
Strokes: 0.5, 1, 1.5, 2, 3
- Damping Coefficient
0-30 lb/(in/s) adjustable
0-5.3 N/(mm/s) - Force Guidelines
Pull Damping: 9 lb max (40 N)
Push Damping: 7 lb max (31.1 N) - Friction
Coefficient: .2
Force without side load: < 1g - Operating Temperature Range
-55°C to +150°C
If operating at temperatures above
+70°C, please advise factory.
- Mounting Hole
Rectangular: .312″ x .375″ or
8 mm x 10 mm
Round: .375″ or 10 mm) - Suggested Mounting Bracket Thickness
.060″ – .093″ (1.52 – 2.36mm) - Mounting Nut Torque
Head: 4-8 in-lb (0.45-0.9Nm)
Rod End: 5-15 in-lb (0.56-1.7Nm) - Stroke
Full stroke is obtained with customer
held mounting tolerance of ± .015″
(0.38 mm).
