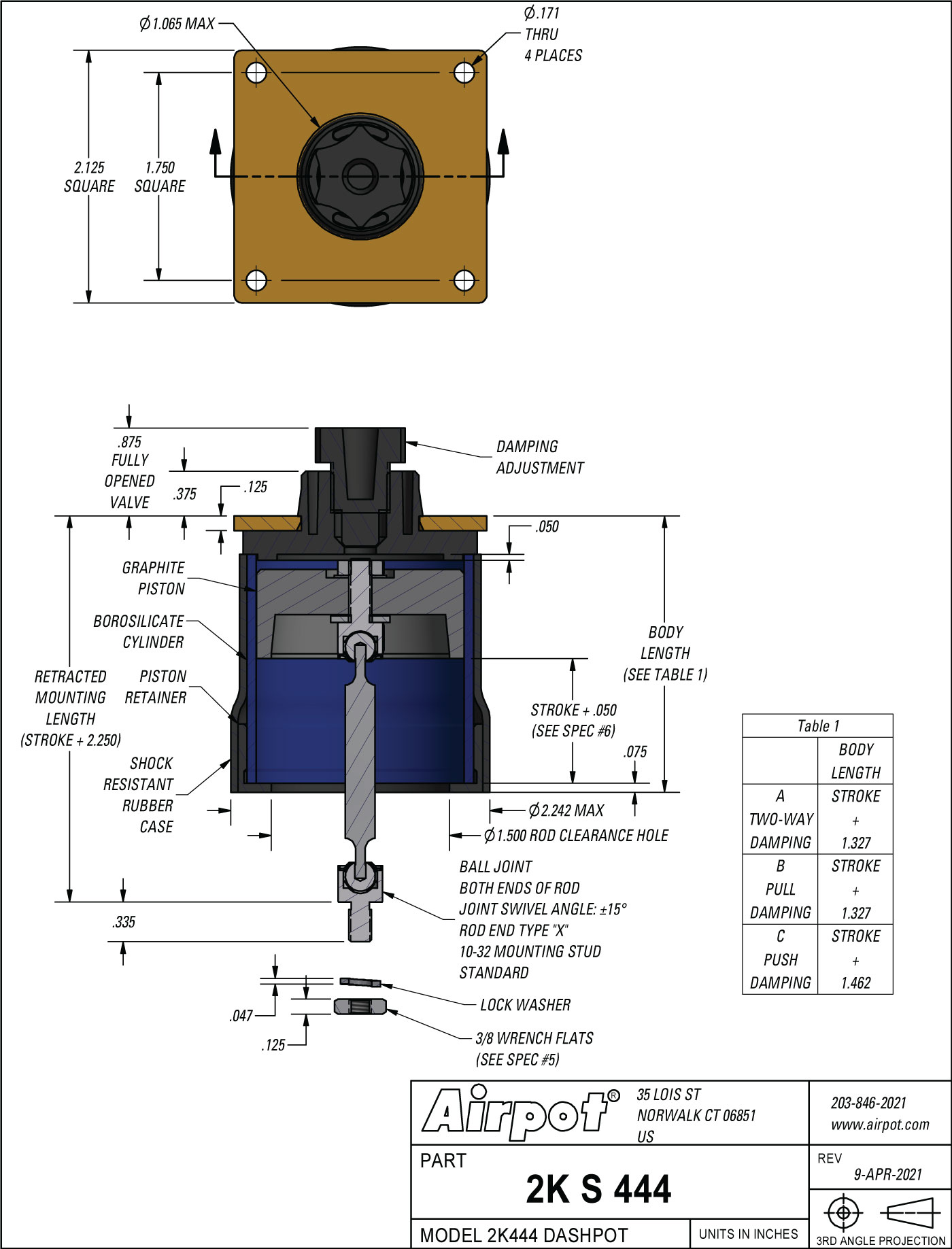

Description
Bore: 1.750″ (44.4 mm)
Strokes: 0.5, 1, 1.5, 2, 3
- Damping Coefficient
0-40 lb/(in/s) adjustable
0-7 N/(mm/s) - Force Guidelines
Pull Damping: 30 lb max (133.45 N)
Push Damping: 24 lb max (106.76 N) - Friction
Coefficient: .2 Force without side load: < 8g - Operating Temperature Range
-55°C to +125°C
If operating at temperatures above
+70°C, please advise factory.
- Mounting Nut Torque
Rod End: 5-15 in-lb (0.56-1.7Nm) - Stroke
Full stroke is obtained with customer
held mounting tolerance of ± .015″
(0.38 mm).
