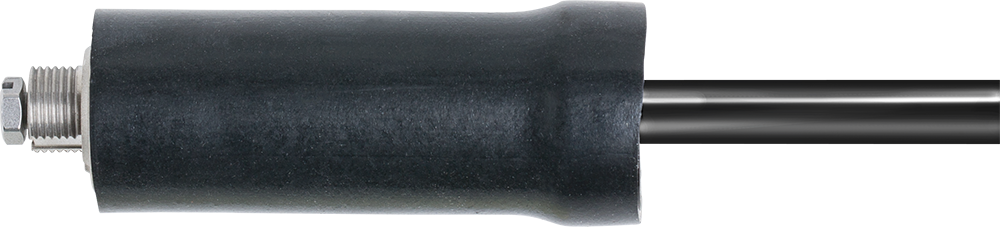

Airpot images 0005 2ks160s copy

Stock Snubbers Model S160S

Category:
Model: 2KS160S

Description

Bore: .627″ (15.93 mm)

  1. Energy Dissipation
    0-.3 ft-lb (0-0.41 Nm)
  2. Spring Force
    Extended: .16 lb (0.71 N)
    Retracted: .28 lb max (1.25 N)
  3. Friction
    Coefficient: .2
    Force without side load: < 1g
  4. Typical Push Rod Reset Time
    Fully Opened Valve: 30 ms
    Fully Closed Valve: 50 ms
  5. Operating Temperature Range
    -55°C to +150°C
    If operating at temperatures above
    +70°C, please advise factory.
  1. Mounting Hole
    Rectangular: .312″ x .375″ or
    8 mm x 10 mm
    Round: .375″ or 10 mm
  2. Suggested Mounting Bracket Thickness
    .060″ – .125″ (1.52 – 3.18)
  3. Mounting Nut Torque
    Head: 4- 8 in-lb (0.45- 0.09Nm)
