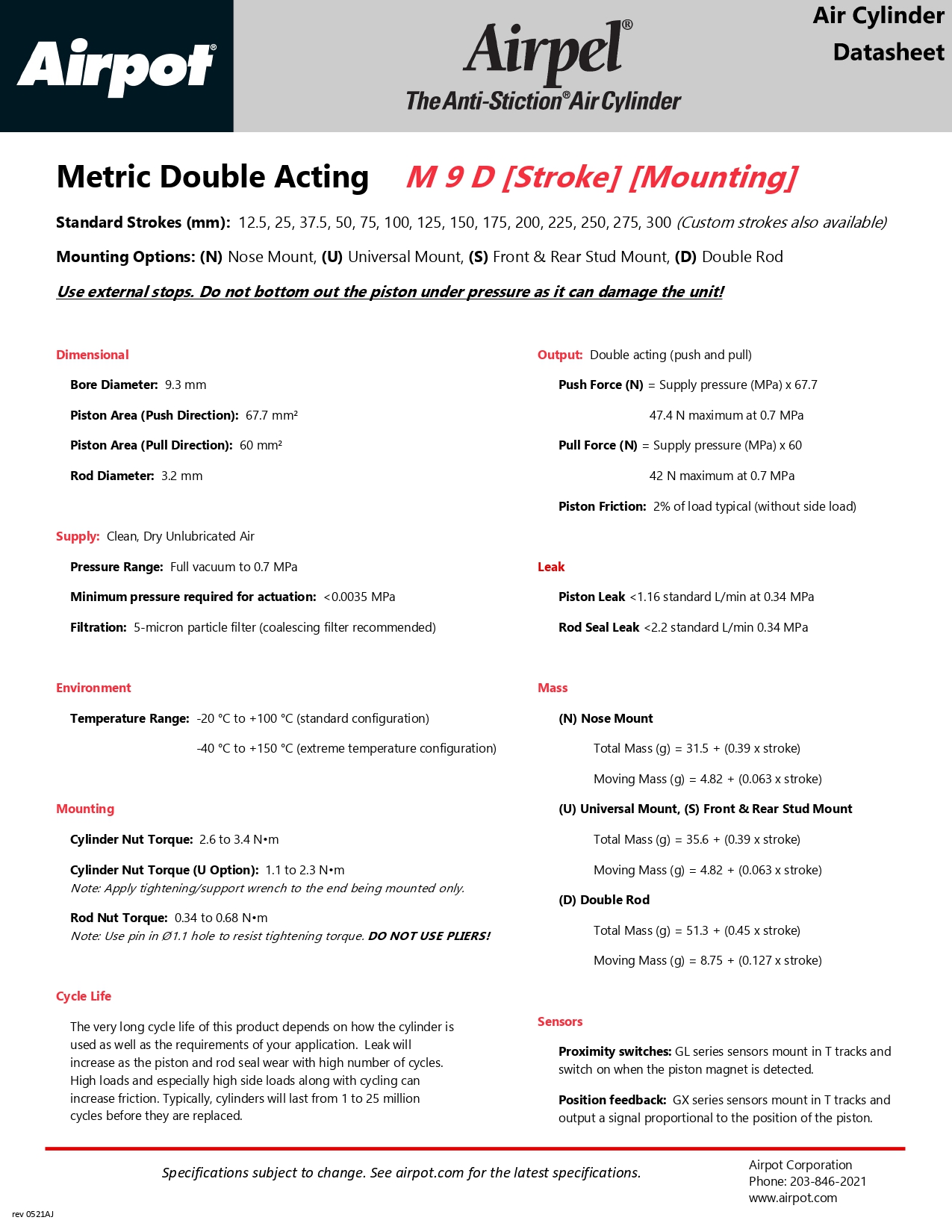

M9 Double Acting – Bore Size (mm): 9.3

Name: M9 Double Acting - Bore Size (mm): 9.3
SKU: 5232
Availability: InStock

Category: Double-Acting

Basic specifications

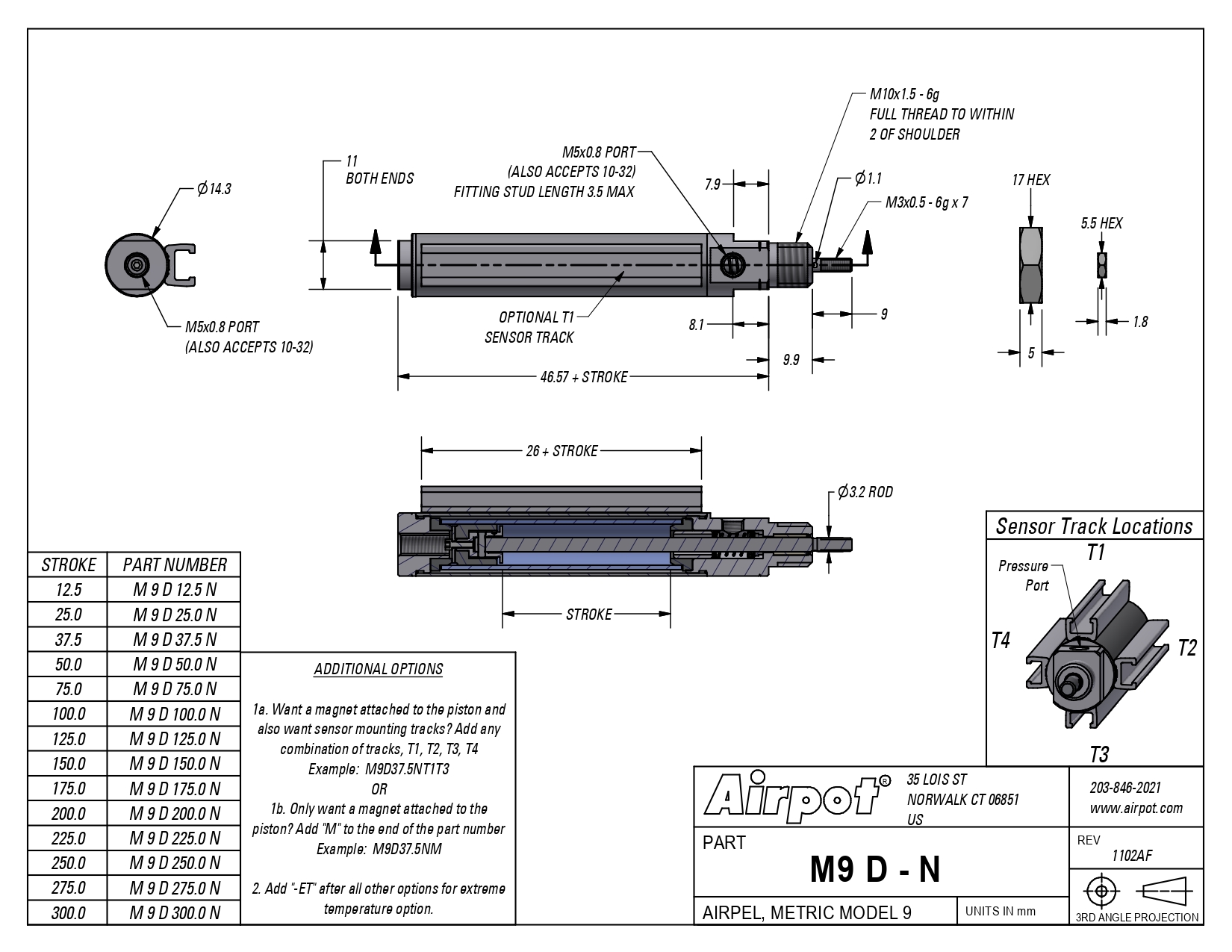

Front Stud Mount includes the stroke options listed here: 12.5–25.0–37.5–50.0–75.0–100.0–125.0–150.0– 175.0–200.0–225.0–250.0–275.0–300.0 Use the dropdown box below to choose the appropriate stroke for your need.

Track locations for optional sensor-ready Airpel configuration.

Configure your part

Mounting option

Pair this product with:

Position Sensors

View product

Filter Regulators

View product

MODEL	M32	M33
Bore (mm)	32.5	32.5
Maximum Pressure (MPa)	0.7	0.7
Suitable for Vacuum Actuation?	No	Yes
Maximum Stock Stroke (mm)	175	300
Custom Strokes Available?	No	Yes
Works with Position Sensors (switches)?	Yes (bracket required)	Yes
Port Size	M5	G 1/8
The M33 weight is less than the M32.
The M33 cycle life is higher than the M32.

M9 Double Acting – Bore Size (mm): 9.3

Pair this product with:

Position Sensors

Filter Regulators

Airpot offers four product families in our line of customizable pneumatic actuator.
