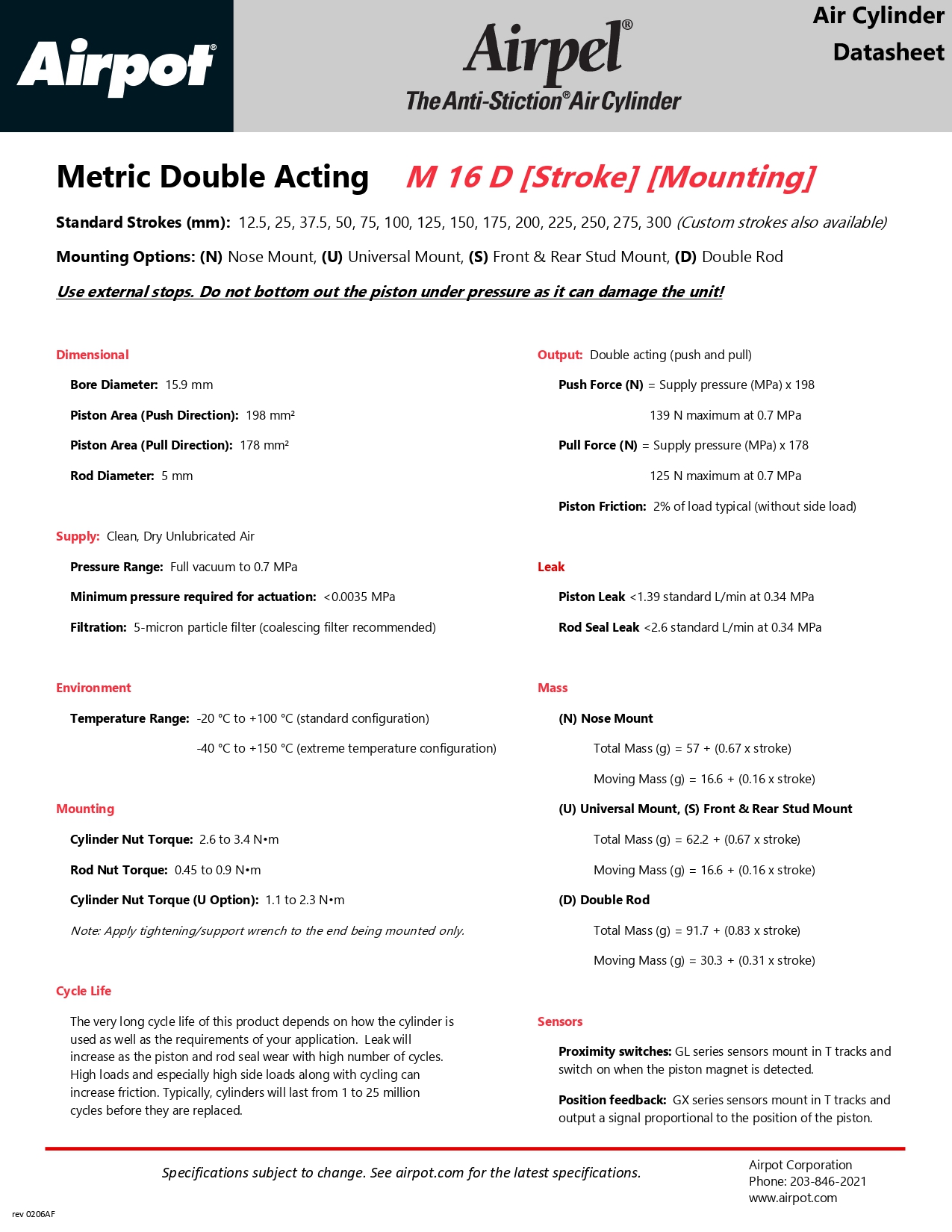

M16 Double Acting – Bore Size (mm): 15.9

Name: M16 Double Acting - Bore Size (mm): 15.9
SKU: 5290
Availability: InStock

Category: Double-Acting

Basic specifications

Front Stud Mount includes the stroke options listed here: 12.5–25.0–37.5–50.0–75.0–100.0–125.0–150.0– 175.0–200.0–225.0–250.0–275.0–300.0 Use the dropdown box below to choose the appropriate stroke for your need.

Track locations for optional sensor-ready Airpel configuration.

Optional Sensor Track Details

Configure your part

Mounting option

Pair this product with:

Position Sensors

View product

Airpel - FFR (Filter-Filter Regulator)

View product

MODEL	M32	M33
Bore (mm)	32.5	33
Piston Area (mm2)	830	830
Maximum Pressure (MPa)	0.7	0.7
Suitable for Vacuum Actuation?	No	No
Maximum Push Force (N)	581	581
Maximum Pull Force (N)	526	526
Operating Temperature Range (°C): Standard Configuration Extreme Temperature	-20 to +100 -40 to +150	-20 to +100 -40 to +150
MAX Leak Rate at 0.34 MPa- by Piston: Standard L/min	2.2	2.2
MAX Leak Rare at 0.34 MPa- by Rod Seal: Standard L/min	2	2

M16 Double Acting – Bore Size (mm): 15.9

Pair this product with:

Position Sensors

Airpel - FFR (Filter-Filter Regulator)

Airpot offers four product families in our line of customizable pneumatic actuator.
